Reclaimed Water Sch40 Purple Solvent Weld

Pacific Plastics IPS Schedule series of PVC pipe is produced for use in reclaimed water applications in which the maximum operating temperature is 140° …

Category:

Specification

Pacific Plastics IPS Schedule series of PVC pipe is produced for use in reclaimed water applications in which the maximum operating temperature is 140° F. The compound is PVC 1120 Type 1 Grade 1, with a cell class of 12454B, per ASTM D1784.

The Schedule series listed below is produced in strict compliance to ASTM D1785. It is listed with NSF and complies with NSF/ANSI Standard 14 and Standard 61.

Sch40 pipe is installed per ASTM D2855. The joints should conform to ASTM D2672, the solvent cement to ASTM D2564 and the primer to ASTM F656.

Cycle Flow Sch40 for use in Reclaimed Water applications:

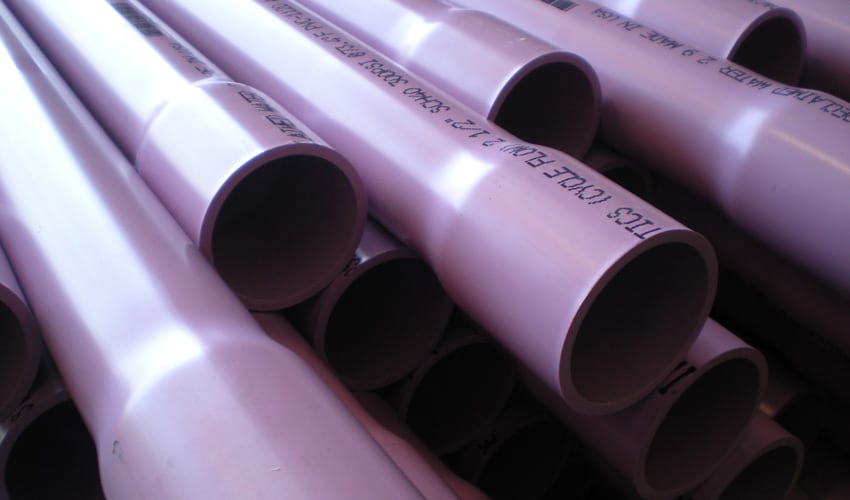

  • Sizes 1/2″ – 8″ are produced in Purple color, 20 foot lengths and Belled End.

The outside diameter and wall thickness of Sch40 pipe are measured in accordance to ASTM D2122 and are shown in the following tables:

Size OD T C PSI
1/2 0.840 0.109 1.00 600
3/4 1.050 0.113 1.25 480
1 1.315 0.133 1.50 450
1 ¼ 1.660 0.140 1.75 370
1 ½ 1.900 0.145 2.00 330
2 2.375 0.154 2.25 280
2 ½ 2.875 0.203 2.50 300
3 3.500 0.216 3.25 260
4 4.500 0.237 4.00 220
6 6.625 0.280 6.00 180
8 8.625 0.322 6.00 160

Size – Inch
OD – Outside Diameter
T – Wall Thickness
C – Approximate Bell Depth
PSI – Pressure Rating

Certification

This is to certify that, in this category of PVC pipe, all the products manufactured by Pacific Plastics have been inspected, sampled and tested in accordance with the following specifi cations and have been found to meet or exceed the requirements of those specifications.

Raw Materials

  • PVC1120 Type1 Grade1
  • Cell Class 12454
  • ASTM D1784 Specifi cation for Rigid PVC Compounds
  • NSF Listed

PVC Pipe

  • Sch40 Purple
  • Solvent Weld Belled End
  • 1/2” – 8″ IPS
  • ASTM D1785 Specification for PVC Pipe
  • ASTM D2672 Specification for IPS PVC Pipe Joints using solvent cement
  • Complies with NSF / ANSI Standard 14
  • Complies with NSF / ANSI Standard 61

Part Numbers

Size Sch40
1/2 AC-40
3/4 BC-40
1 CC-40
1 ¼ DC-40
1 ½ EC-40
2 FC-40
2 ½ GC-40
3 HC-40
4 IC-40
6 JC-40
8 -

Price List


Size Sch40
1/2 75.00
3/4 98.90
1 149.50
1 ¼ 199.70
1 ½ 238.30
2 320.20
2 ½ 506.00
3 662.40
4 943.00
6 1668.90
8 -

Loading Chart - IPS Pipe 20'

Size Ft/L L/T Ft/T
1/2 7,200 44 316,000
3/4 8,000 32 256,000
1 5,500 30 165,000
1 ¼ 4,400 28 123,000
1 ½ 3,360 28 94,080
2 2,000 28 56,000
3 1,100 24 26,400
4 680 24 16,320
5 520 16 8,320
6 440 16 7,040
8 280 16 4,480
10 240 12 2,880
12 120 16 1,920

Weights - Reclaimed Water SCH40

Size Sch40
1/2 16.3
3/4 21.5
1 32.5
1 ¼ 43.4
1 ½ 51.8
2 69.6
2 ½ 110.0
3 144.0
4 205.0
6 362.8
8 566.0
10 769.0
12 1017.0
